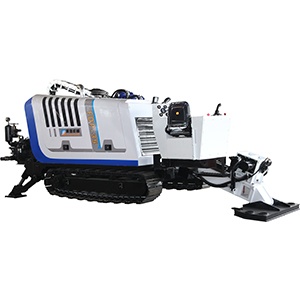

FDP-35 Horizontal Directional Drilling Rig

Main Structure Features:
1. FDP-35 horizontal directional drilling rig adopts advanced control technology for the hydraulic and electric systems. It is comfortable in operation, and reliable in performance with wired remote control and main components from well-known brands home and abroad.
2. This hydraulic drilling rig is featured by Cummins diesel engine with low emission and noise and international-leading control technique, suitable for working in urban area. Power consumption is reduced to the lowest level under the non-loading working condition.
3. The rotation of drill head is driven by four hydraulic motors with large torque and gear 2 stepless speed adjustment.
4. Push/pull of drill head is driven by four motors with reducer. Rack and pinion transmission structure ensures the high stability and efficiency of the horizontal directional drilling rig.
5. Mud pump of the hydraulic drilling rig is hydraulically-driven and in mechanical transmission form. Pressure and displacement of the pump can be flexibly adjusted.
6. Our horizontal directional drilling rig adopts steel crawlers with rubber track pads, making the rig not only be capable of working under heavy load, but travel on all kinds of roads.
7. The hydraulic drilling rig is configured with complete set of drilling tools, including Φ73 × 3000mm drill rod. The tools can be provided based on customized requirements.
8. This horizontal directional drilling rig is equipped with wireless guide device for easy operation.
9. Optional manipulator allows easy rod loading and unloading, reducing intensity of work of operators.
