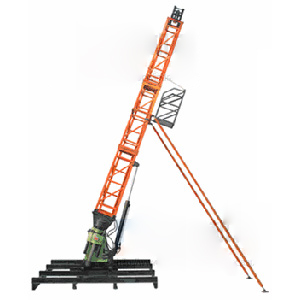

HXY-44T Core Drilling Rig

Home » Products » Drilling Rig » Core Drilling Rig » Spindle Drilling Rig » HXY-44T Core Drilling Rig

1. The HXY-44T spindle type core drilling rig is integrated with main machine and dill tower. It has a compact structure and reasonable layout. All the components are exposed without any overlapping. Therefore, it is easy to maintain.
2. The drilling rig is installed with an anti-vibration meter. Thanks to the meter, the condition under the hole can be understood.
3 The proper quantity of the handling lever makes the drilling rig's operation reliable and flexible.
4. The drilling rig is light. The weight of the biggest apparatus is300 kg (661.5 lb); the overall weight of the drilling rig is 2150kg (4741 lb). Besides, it is easy to disassemble into 9 parts. The lightness and the disassembly make it effortless to be moved even in the mountain area.
4. The drilling rig is fed by double hydraulic cylinder. The length of drilling rig's spindle is 93mm (3.66 inch) and its stroke, 600mm(23.62 inch).
5. As for its power system, the drilling rig has more than 8 rotary speeds and large speed range. The maximum torque is 3200 N·m (2358 lbf·ft). The drilling rig can produce great torque at the low speed.
6. The drilling rig has powerful drilling capacity. The rated drilling depth comes up to 1,000m (3280 feet) with 71mm (2.80 inch) wire-line coring drill rod.
7. The hydraulic chuck is adopted with three-jaws self centering. It is strong and steady in clamping force.
8. The water brake keeps the deep-hole drilling steady and smooth.
9. Its oil is supplied by a simple gear pump which is easy to install and operate. The pump is lower in energy-consumption and in oil temperature.
10. In cases of high speed drilling, the drilling rig can still be reliable and stable for its low gravity center and the long travel of 460mm (18.1 inch).
Specifications of Drilling Rig HXY-44T

Drilling Depth 700—1400 m (2296-4592 feet)
Max. Torque 3.2 KN·m (2358 lbf·ft)
Spindle Stroke 600 mm(23.62 inch)
I.D of Spindle 93 mm(3.66 inch)
Max. Lifting Capacity of Spindle 120 KN(26976 lbf)
Max. Pressure Force of Spindle 90 KN(20232 lbf)
Max. Hoisting Force 45 KN(10116 lbf)
Engine Power 37 KW(49.6HP)
The Nominal Height of Tower 10 m(32.8 feet)
The Nominal Area of Base 4 × 4m (13.1 × 13.1 feet)
The Nominal Area of Top 0.56 × 0.65m(1.84×2.13feet)
The Number of Pulleys 5 or 3 pcs
Max. Load of Mast 100 KN(22480 lbf)
The Load of Movable Work Platform 800 N(180 lbf)
Adjusted Angles of Drill Tower 45°-90°
